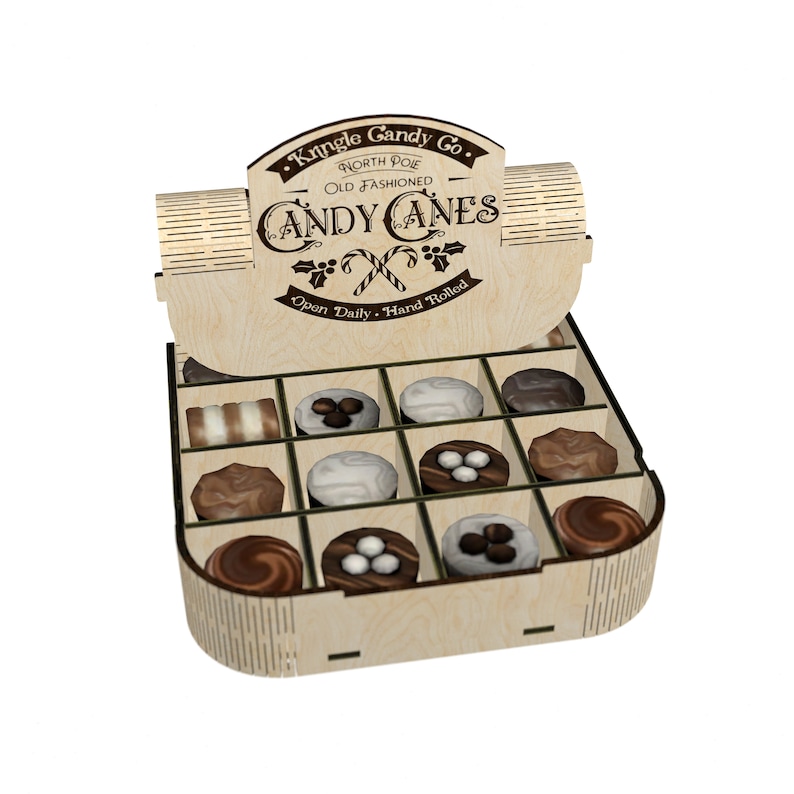

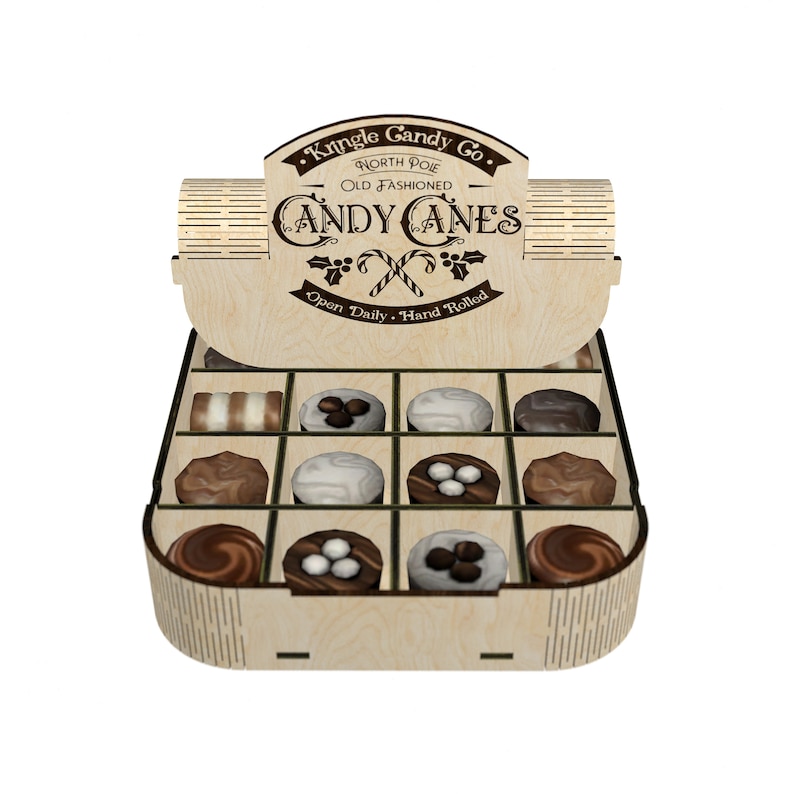

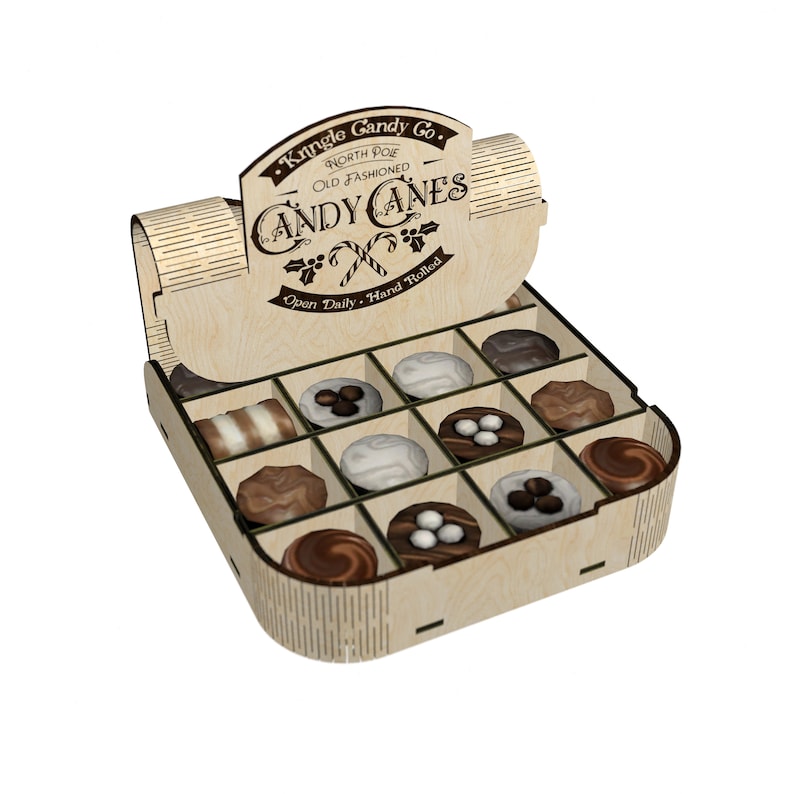

Laser cut Candy box for handmade chocolate candy dxf svg cdr dwg vector file laser cut plan 3, 3.1, 4 mm and 1/8 inch laser cut file

Laser cut Candy box for handmade chocolate candy dxf svg cdr dwg vector file laser cut plan 3, 3.1, 4 mm and 1/8 inch laser cut file

-Useful for Material’s thickness 3, 3.1, 4 mm and 1/8 inch

External dimensions:
3 mm version 155 x 155 x 34 mm (16 cells 35x35x23 mm size)
3.1 mm version 156 x 156 x 34 mm (16 cells 35x35x23 mm size)
1/8 inch version 156 x 156 x 34 mm (16 cells 35x35x23 mm size)
4 mm version 160 x 160 x 36 mm (16 cells 35x35x23 mm size)

If you need another size of this model…just let me know

-IMPORTANT: No physical item will be sent.

– Use 0.15 mm outside compensation for outside contours ( black color ) and 0.15 mm inside compensation for holes ( red color ) if you want to get a very tight assembly with minimum glue

-These files are vector and compatible with all laser cutting software

– Assembling manual attached (PDF)

Inside you will find the simple manual. Be careful and thorough at the assembling specially with flexible details.
To achieve the best quolity I would recommend to you to grind every detail after cutting. The fiber of the material should be positioned along the long incisions. If this condition won’t be met the detail will be fragile

– You will get one .zip file containing
.DWG File
.Dxf File
.cdr 11 File
.Svg File
.PDF (manual)
